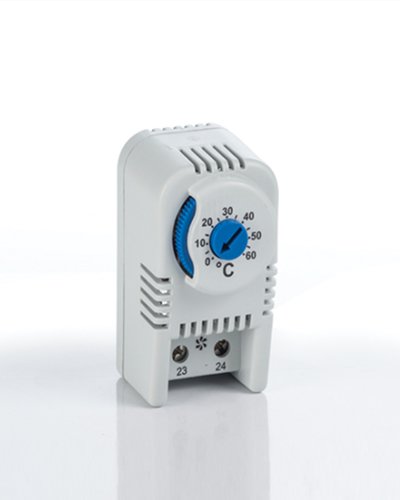

Product Description
Models Unit PTVT
Contact Function  – NO
Temperature Adjustment Range °C 0-60
Potentiometer Color  – Blue
250V AC / 120V AC A 15 (2)
Sensor Type Bimetal
Contact Type Sudden movement
Service Life Cycles > 100.000
Electrical Connections  – 2-Pole terminal block
Plastic Material  – UL94 V0 ABS Flame Retardant
Degree of Protection EN60529 IP20
Operating Temperature °C -25 / +80
Storage Temperature °C -45 / +80
Assembly  – 35 mm must be mounted on the DIN rail
Dimensions HxWxD mm 61x34x38
Weight g 45
