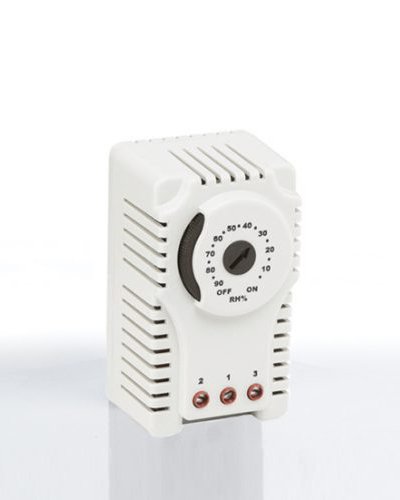

| Model | Unit | PHG02 |
| Power Supply | V AC | 110-250 |
| Adjustment Range | % RH | 10-90 |
| Potentiometer Color | – | Black |
| Current | A | (10-5) |
| Differential | – | %5, max. %10 |
| Sensor Type | – | Polyamide Ribbon |
| Electrical Connections | – | 3-pole terminal block |
| Cable Cross Section | – | 0.75 mm² to 4.0 mm² |
| Operating Temperature | °C | +10/+60 |
| Storage Temperature | °C | +10/+60 |
| Degree of Protection | – | IP20 |
| Color | – | RAL7035 |
| Assembly | – | 35 mm must be mounted on DIN rails |
| Dimensions HxWxD | mm | 94x54x56 |
| Weight | g | 180 |
