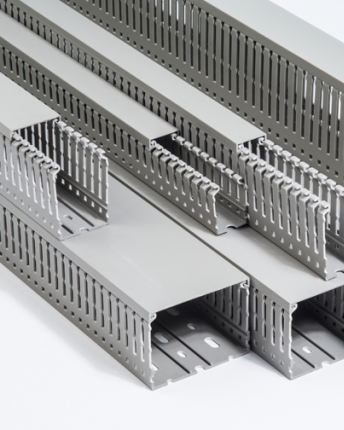

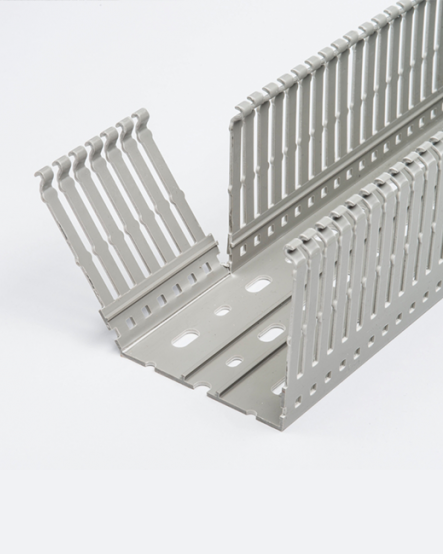

Perforated Cable Ducts

PRODUCT FEATURES

UL...

Product Description

PRODUCT FEATURES

UL94-V0 is made of PVC raw material with flame-retardant properties
Slot spacing: 4/6/4 + 5/8/5 mm wide
Base mounting holes in accordance with DIN 43659 standard
Standard duct lengths 2mt
Complies with EN 5085-2-3 standards
Special carton packaging resistant to all kinds of shipment and storage conditions
Standard color RAL7030 Grey, other colors can be produced on request
CE, RoHS,TUV Rheinland certified

Product Code	Dimensions	Slot Range	Color	Packaging
PDK 2540	25×40	4/6/4 mm	RAL 7030 Grey	64×2 m
PDK 2560	25×60	4/6/4 mm	RAL 7030 Grey	48×2 m
PDK 2580	25×80	4/6/4 mm	RAL 7030 Grey	32×2 m
PDK 4040	40×40	4/6/4 mm	RAL 7030 Grey	35×2 m
PDK 4060	40×60	4/6/4 mm	RAL 7030 Grey	30×2 m
PDK 4080	40×80	4/6/4 mm	RAL 7030 Grey	20×2 m
PDK 4010	40×100	5/8/5 mm	RAL 7030 Grey	20×2 m
PDK 6040	60×40	4/6/4 mm	RAL 7030 Grey	25×2 m
PDK 6060	60×60	4/6/4 mm	RAL 7030 Grey	24×2 m
PDK 6080	60×80	4/6/4 mm	RAL 7030 Grey	16×2 m
PDK 6010	60×100	5/8/5 mm	RAL 7030 Grey	16×2 m
PDK 8060	80×60	4/6/4 mm	RAL 7030 Grey	14×2 m
PDK 8080	80×80	4/6/4 mm	RAL 7030 Grey	12×2 m
PDK 8010	80×100	5/8/5 mm	RAL 7030 Grey	12x 2 m
PDK 1060	100×60	4/6/4 mm	RAL 7030 Grey	10×2 m
PDK 1080	100×80	4/6/4 mm	RAL 7030 Grey	10×2 m
PDK 1010	100×100	5/8/5 mm	RAL 7030 Grey	8×2 m
PDK 1260	120×60	4/6/4 mm	RAL 7030 Grey	10×2 m
PDK 1280	120×80	4/6/4 mm	RAL 7030 Grey	8×2 m
