Models | Unit | PFI1000 | PTF1000 | PTF1000T |
Capacity | m3/h | - | 30 (41) | 30 (41) |
Feeding | V/Hz | - | 230V 50-60Hz | 230V 50-60Hz |

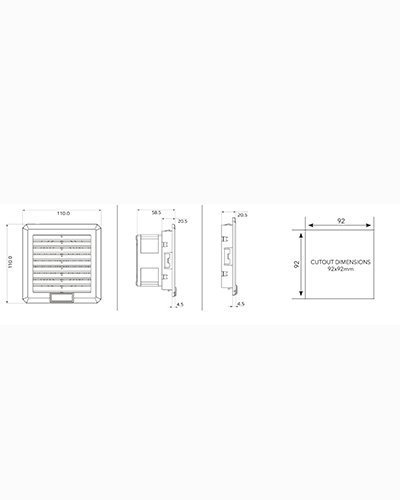

Dimensions | mm | 110x110x20.5 | 110x110x58.5 | 110x110x58.5 |
Power Consumption | W | - | 14 (13) | 14 (13) |
Nominal Current | A | - | 0.08/0.07 | 0.08/0.07 |
Over Current Protection | - | - | Impedance | Impedance |
Electrical Connection | - | - | Connection via Cable | 3 - Pole Terminal |
Operating Temperature | C | -10/+70 | -10/+70 | -10/+70 |
Degree of Protection | - | IP54 | IP54 / Class I | IP54 / Class I |
Noise Level | dB(A) | 62 (64) | 28 (31) | 28 (31) |
Flow Direction | - | - | Outside to Inside | Outside to Inside |
Bearing | - | - | With Bracelet | With Bracelet |
Plastic Material | - | UL94 V0 ABS Flame Retardant | UL94 V0 ABS Flame Retardant | UL94 V0 ABS Flame Retardant |
Gasket | - | Adhesive Gasket | Adhesive Gasket | Adhesive Gasket |
Color | - | RAL 7035 RAL 7032 on request | RAL 7035 RAL 7032 on request | RAL 7035 RAL 7032 on request |
Weight | kg | 0.10 | 0.40 | 0.40 |
Assembly | - | Snap-on quick coupling | Snap-on quick coupling | Snap-on quick coupling |
